android 纯c/c++开发【百科全说】

新建一个Natvie工程

01

打开eclipse；
02

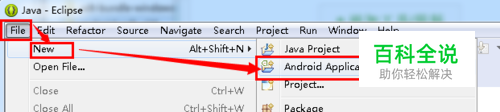

打开菜单->File->New->Android Application；
03

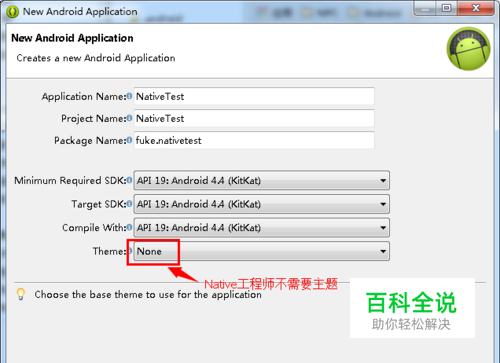

设置工程名，sdk版本，注意：主题设置为 None，点击next；
04

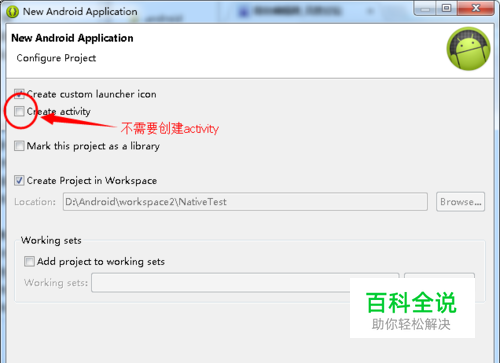

Configure Project 是取消 Create activity 的复选框，点击next；
05

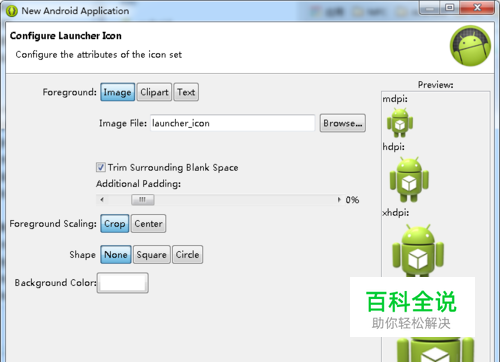

Configure the attributes of the icon set，直接点击 next；
06

Select whether to create an activity, and if so, what kind of activity. 点击 finish即可；
07

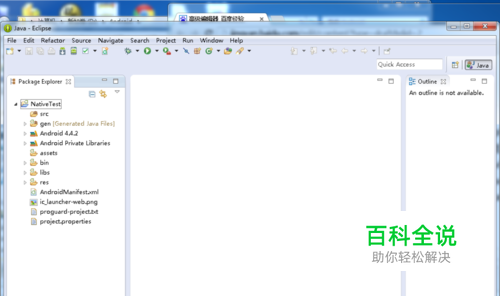

工程便创建出来了

配置Makefile

01

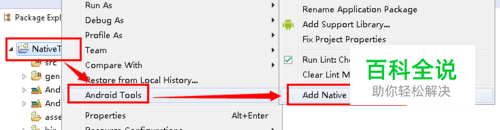

右键工程NativeTest->弹出菜单->Android Tools->Add Native Support...
02

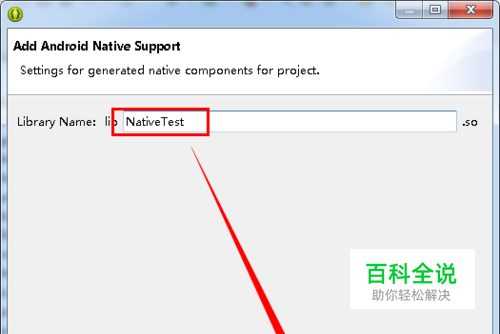

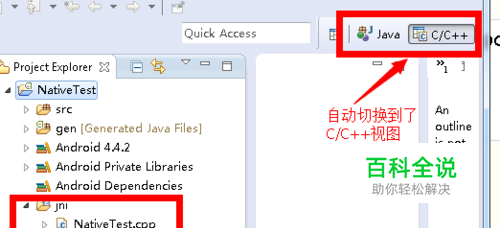

Settings for generated native components for project.界面直接点击Finish
03

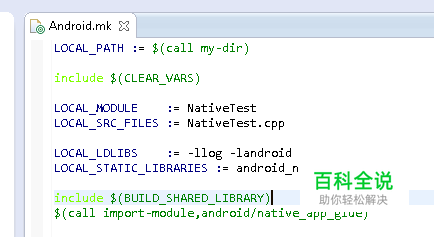

将 android.mk 的内容补充完整： LOCAL_PATH := $(call my-dir) include $(CLEAR_VARS) LOCAL_MODULE := NativeTest LOCAL_SRC_FILES := NativeTest.cpp LOCAL_LDLIBS := -llog -landroid LOCAL_STATIC_LIBRARIES := android_native_app_glue include $(BUILD_SHARED_LIBRARY) $(call import-module,android/native_app_glue)
04

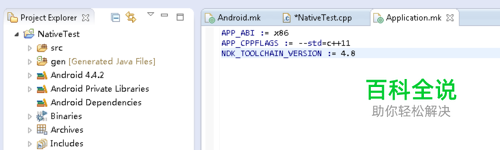

增加一个 Application.mk 文件（这一步可选），并写入： APP_ABI := x86 APP_CPPFLAGS := --std=c++11 NDK_TOOLCHAIN_VERSION := 4.8

代码部分

01

1、 android_main：这个函数类似于win32开发的WinMain函数 2、app->onAppCmd = onAppCmd; app->onInputEvent = onInputEvent; 类似于win32中设置窗口的回掉函数 3、 while ((ident=ALooper_pollAll(-1, NULL, &events, (void**)&source)) >= 0) { // Process this event. if (source != NULL) { source->process(app, source); } // Check if we are exiting. if (app->destroyRequested != 0) { return; } } 这一段类似于win32的消息循环 4、为了方便大家粘贴， android_main函数的代码如下： void android_main(struct android_app* app) { // Make sure glue isn't stripped. app_dummy(); app->onAppCmd = onAppCmd; app->onInputEvent = onInputEvent; while (1) { int ident; int events; struct android_poll_source* source; while ((ident=ALooper_pollAll(-1, NULL, &events, (void**)&source)) >= 0) { // Process this event. if (source != NULL) { source->process(app, source); } // Check if we are exiting. if (app->destroyRequested != 0) { return; } } } }
02

onAppCmd描述的是真个activity的生命周期，类似于win32开发的消息处理回掉函数： static void onAppCmd(struct android_app* app, int32_t cmd) { switch (cmd) { case APP_CMD_SAVE_STATE: // The system has asked us to save our current state. Do so. __android_log_print(ANDROID_LOG_DEBUG, "fuke", "engine_handle_cmd APP_CMD_SAVE_STATE"); break; case APP_CMD_INIT_WINDOW: // The window is being shown, get it ready. __android_log_print(ANDROID_LOG_DEBUG, "fuke", "engine_handle_cmd APP_CMD_INIT_WINDOW"); break; case APP_CMD_TERM_WINDOW: __android_log_print(ANDROID_LOG_DEBUG, "fuke", "engine_handle_cmd APP_CMD_TERM_WINDOW"); break; case APP_CMD_GAINED_FOCUS: // When our app gains focus, we start monitoring the accelerometer. __android_log_print(ANDROID_LOG_DEBUG, "fuke", "engine_handle_cmd APP_CMD_GAINED_FOCUS"); break; case APP_CMD_LOST_FOCUS: // When our app loses focus, we stop monitoring the accelerometer. // This is to avoid consuming battery while not being used. __android_log_print(ANDROID_LOG_DEBUG, "fuke", "engine_handle_cmd APP_CMD_LOST_FOCUS"); break; } }
03

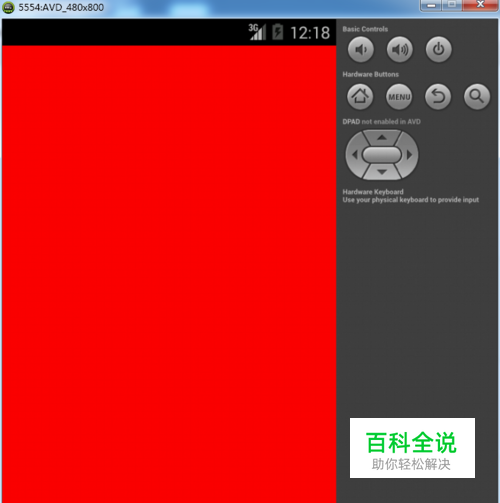

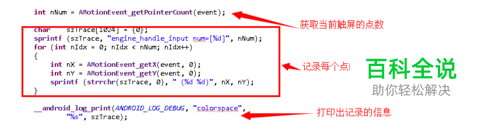

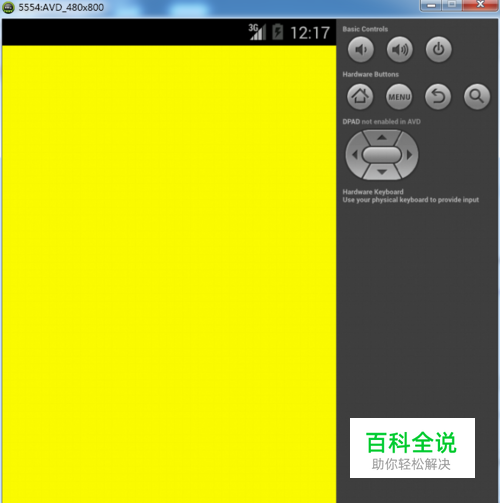

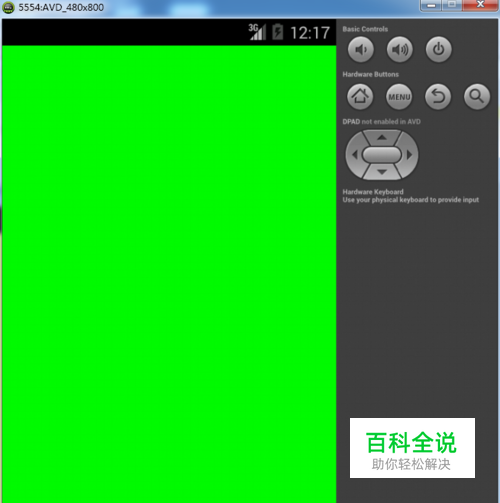

onInputEvent主要是用来触屏相关事件，也类似于win32开发的消息处理回掉函数，函数有两部分组成： 1、检测多点触屏，并通过logcat打印出多点触屏的信息； 2、控制屏幕颜色变化，每次松开手时颜色变化 3、为方便大家粘贴， onInputEvent函数的代码记录如下： static int32_t onInputEvent(struct android_app* app, AInputEvent* event) { if (AInputEvent_getType(event) == AINPUT_EVENT_TYPE_MOTION) { int nNum = AMotionEvent_getPointerCount(event); char szTrace[1024] = {0}; sprintf (szTrace, "engine_handle_input num=[%d]", nNum); for (int nIdx = 0; nIdx < nNum; nIdx++) { int nX = AMotionEvent_getX(event, 0); int nY = AMotionEvent_getY(event, 0); sprintf (strrchr(szTrace, 0), " (%d %d)", nX, nY); } __android_log_print(ANDROID_LOG_DEBUG, "colorspace", "%s", szTrace); if (AKeyEvent_getAction(event) != AKEY_EVENT_ACTION_UP) return 1; ANativeWindow_Buffer nativeWindow = {0}; int nRet = ANativeWindow_lock(app->pendingWindow, &nativeWindow, NULL); int nArea = nativeWindow.width * nativeWindow.height; unsigned long* pdwScreen = (unsigned long*)nativeWindow.bits; static int s_nClr = 0; unsigned long pdwClr[] = { 0x00000000, 0x000000ff, 0x0000ffff, 0x0000ff00, 0x00ffff00, 0x00ff0000, 0x00ff00ff, 0x00ffffff}; s_nClr ++; if (s_nClr > sizeof(pdwClr) / sizeof(unsigned long)) s_nClr = 0; for (int nIdx = 0; nIdx < nArea; nIdx++) { pdwScreen[nIdx] = pdwClr[s_nClr]; } ANativeWindow_unlockAndPost(app->pendingWindow); return 1; } return 0; }

设置工程属性

01

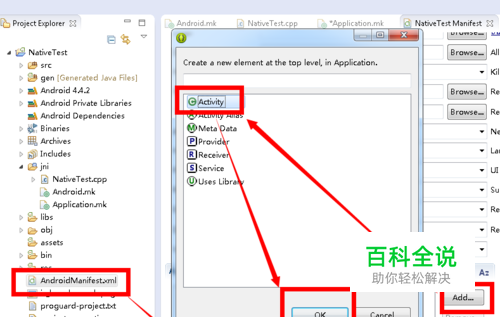

1、打开 AndroidManifest.xml 2、打开 Application 分页 3、增加一个 Activity 如下所示：
02

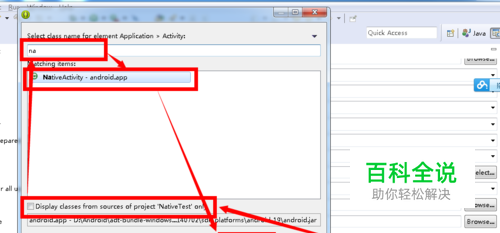

1、选择右边的 Browse; 2、取消 "Display classes from sources of ..." 前面的复选框; 3、在搜索栏输入"na"，选中列出来的 "NativeActivity" 4、点击OK 效果如下：
03

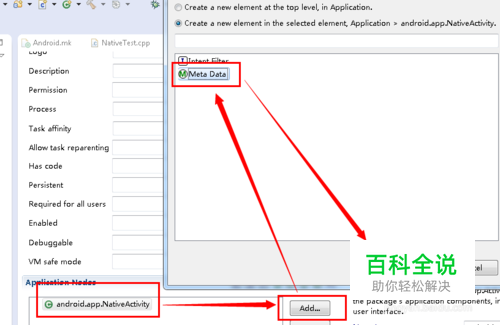

1、选中 android.app.nativeActivity 2、点击 add 3、选择 Meta Data 4、点击Ok
04

输入： android:name="android.app.lib_name" android:value="NativeTest"
05

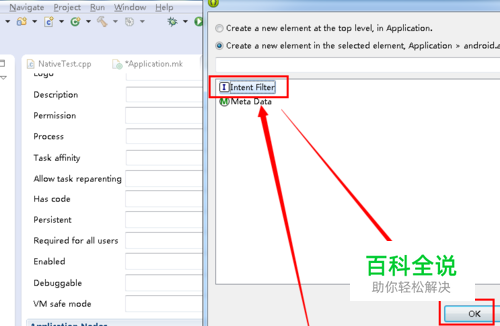

1、选中 android.app.nativeActivity 2、点击 add 3、选择 Intent Filter 4、点击Ok
06

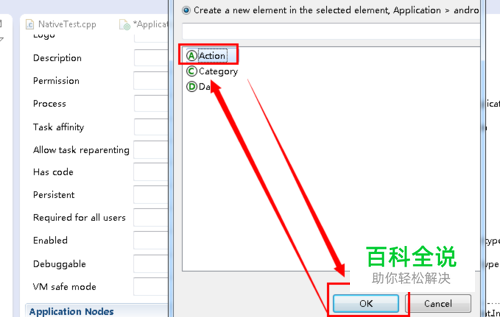

1、选中 Intent Filter 2、点击 add 3、选择 Action 4、点击Ok 5、设置 android:name="android.intent.action.MAIN"
07

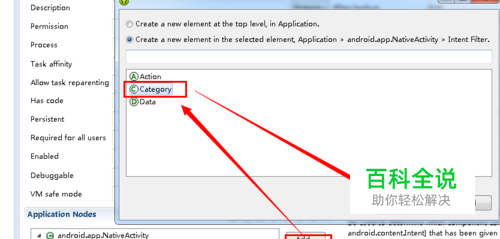

1、选中 Intent Filter 2、点击 add 3、选择 Category 4、点击Ok 5、设置 android:name="android.intent.category.LAUNCHER"
