Android项目使用support v7时遇到的各种问题

当我们开发android应用需要用到android-support-v7-appcompat.jar这个库时(比方说要在2.2版本上使用actionbar和fragment),在项目中导入v4和v7这两个库之后,新手往往会遇到一些问题。在这里,总结一下可能遇到的问题,以及解决的方法。

操作方法

  • 01

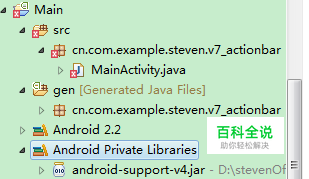

    首先是在项目中导入这两个库 可以通过在项目根目录创建一个libs文件,然后把这两个库拷贝到里面,然后eclipse刷新一下这个项目,eclipse会智能添加这两个库

  • 02

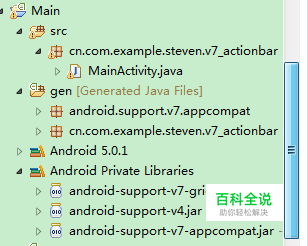

    添加完之后,可能遇到的问题: 一类问题:  values\......No resource found 比方说: res\values\styles.xml:4: error: Error retrieving parent for item: No resource found that matches the given name 'Theme.AppCompat.Light.DarkActionBar'. 对于values这个地方产生的no resource found问题,说明是没有v7下的资源。 解决方法: 添加资源库,针对上面的例子,AppCompat这个是v7里的,所以缺少的是v7的资源。从sdk去获取,路径是sdk\extras\android\support\v7\appcompat,把这个library通过eclipse导入(import)。然后之前的项目添加该lib,再clean下。这样上面的问题可以搞定。

  • 03

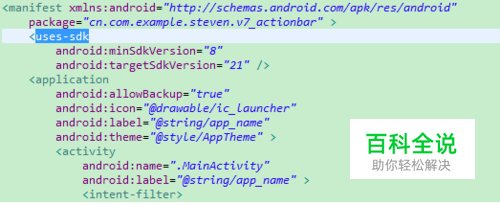

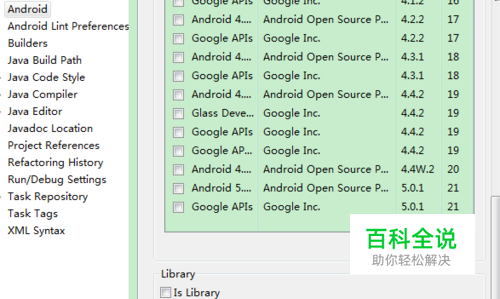

    二类问题:values-v11,values-v21,values-v17等等下的No resource found 比方说: appcompat\res\values-v21\styles_base.xml:75: error: Error retrieving parent for item: No resource found that matches the given name 'android:Widget.Material.ActionButton'. appcompat\res\values-v11\themes_base.xml:178: error: Error: No resource found that matches the given name: attr 'android:windowActionBar'. appcompat\res\values-v14\themes_base.xml:27: error: Error: No resource found that matches the given name: attr 'android:actionModePasteDrawable'. 对于在values-v11这类针对不同android target加载的values下找不到资源的问题,原因还是一样,找不到这个target下的资源。 解决方法: 很简单,把project.properties里的target=android-8或者可能稍微高点,改到target=android-21或者更高(前提是sdk已经下载了该target的库),然后再clean下项目。这样这类问题也就解决了,当然你在Manifest里不要忘记加上uses-sdk,来允许最低版本。

  • 04

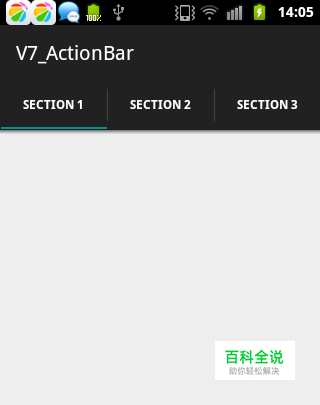

    最后附上测试写的actionbar tab加上fragment,在Android2.3.4三星手机上的实现结果
